The Story
The Levinson an improved version Let's Split and adds LED backlight and 2u key support. Supports MX/Alps/Choc switches.
There are three different types of Levinson PCBs currently available:

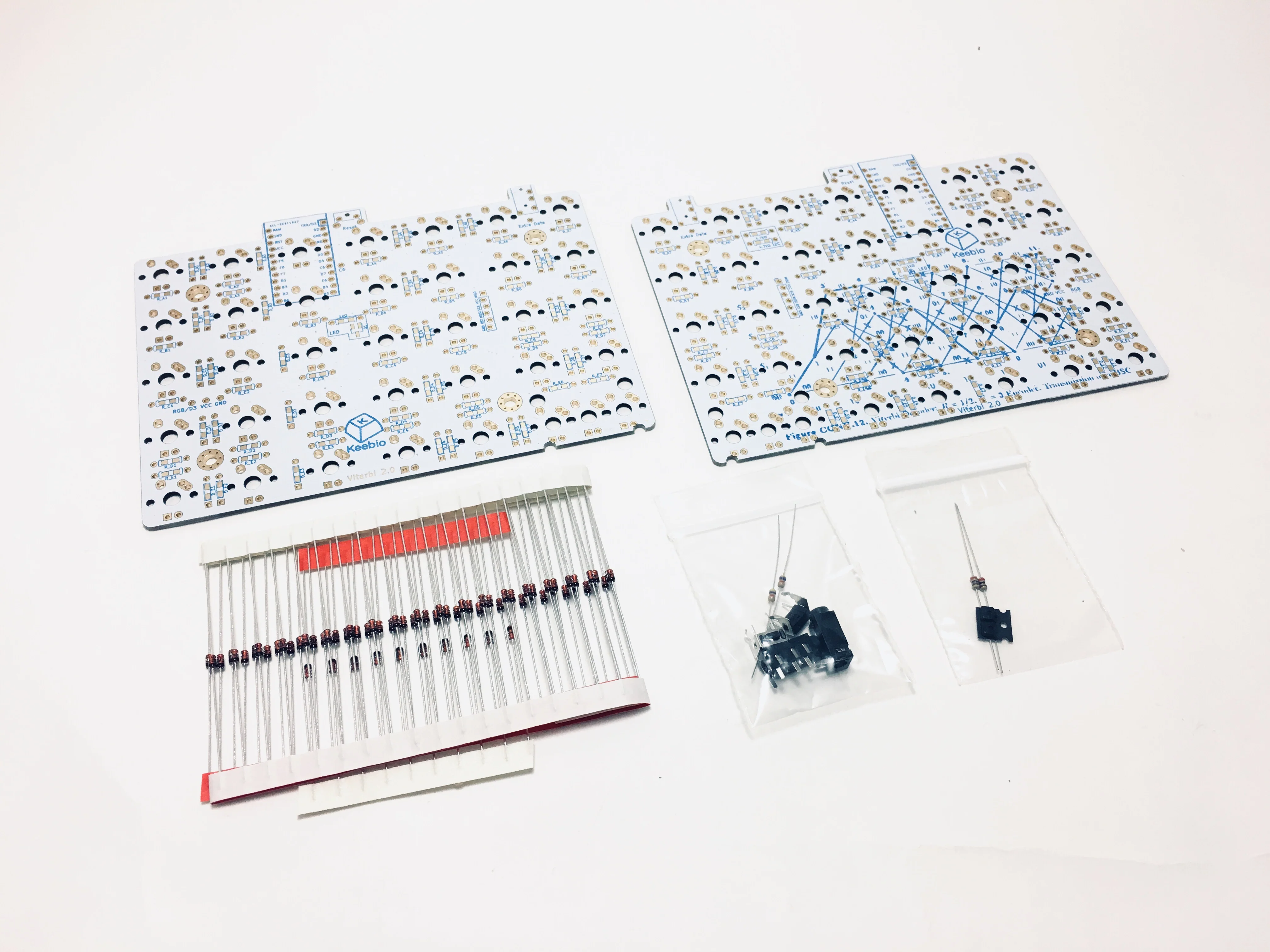

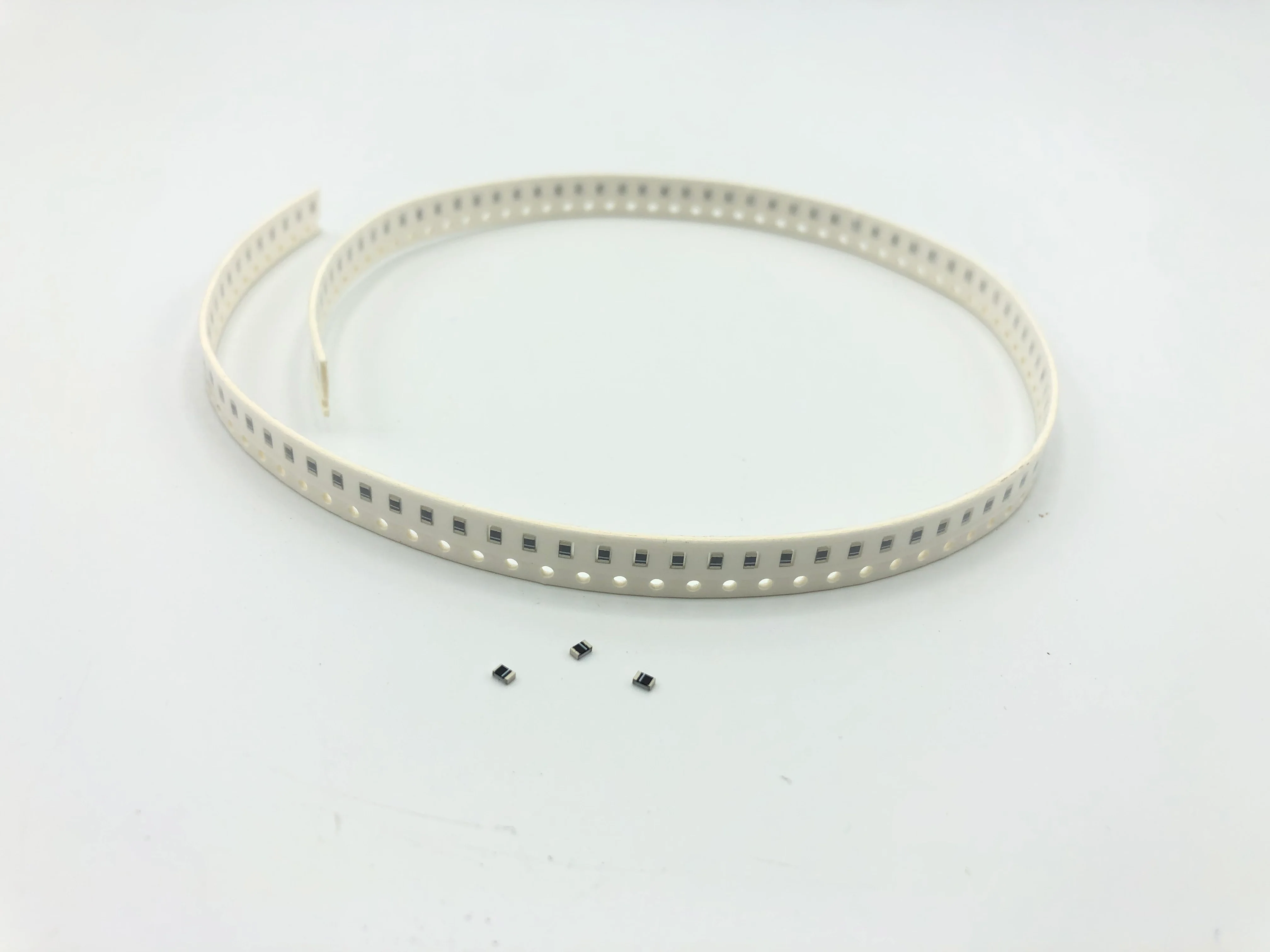

- Levinson Rev. 3 PCB Kit (this item): More DIY involved, where you have to solder on diodes/resistors/Pro Micro yourself
- Nyquist/Levinson Rev. 3 (see the product page): Less DIY involved. Already has everything except switches soldered to it. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
- Nyquist/Levinson Rev. 4 (see the product page): Has MX-compatible hotswap sockets and per-key RGB LEDs pre-soldered on. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
Layout

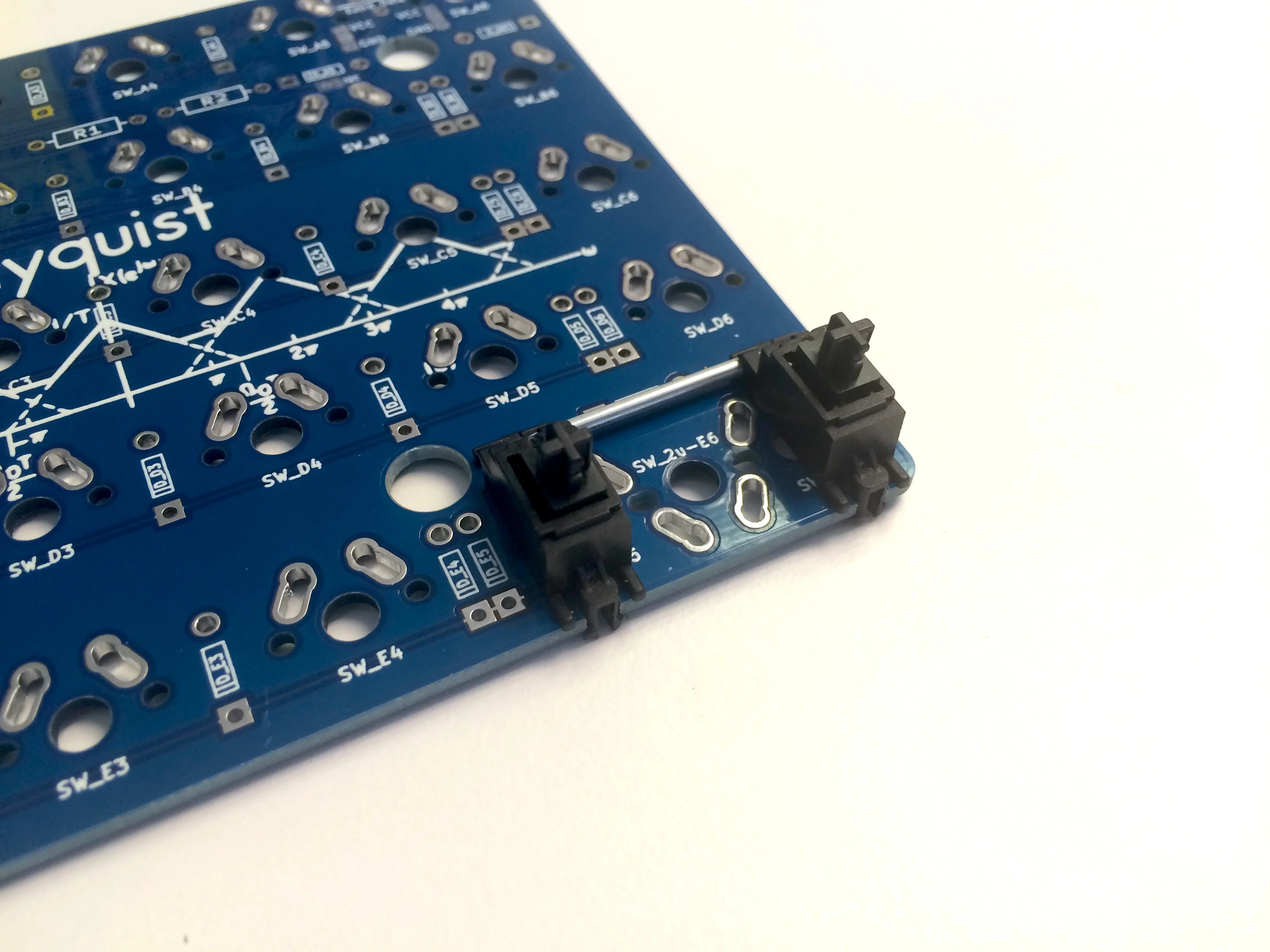

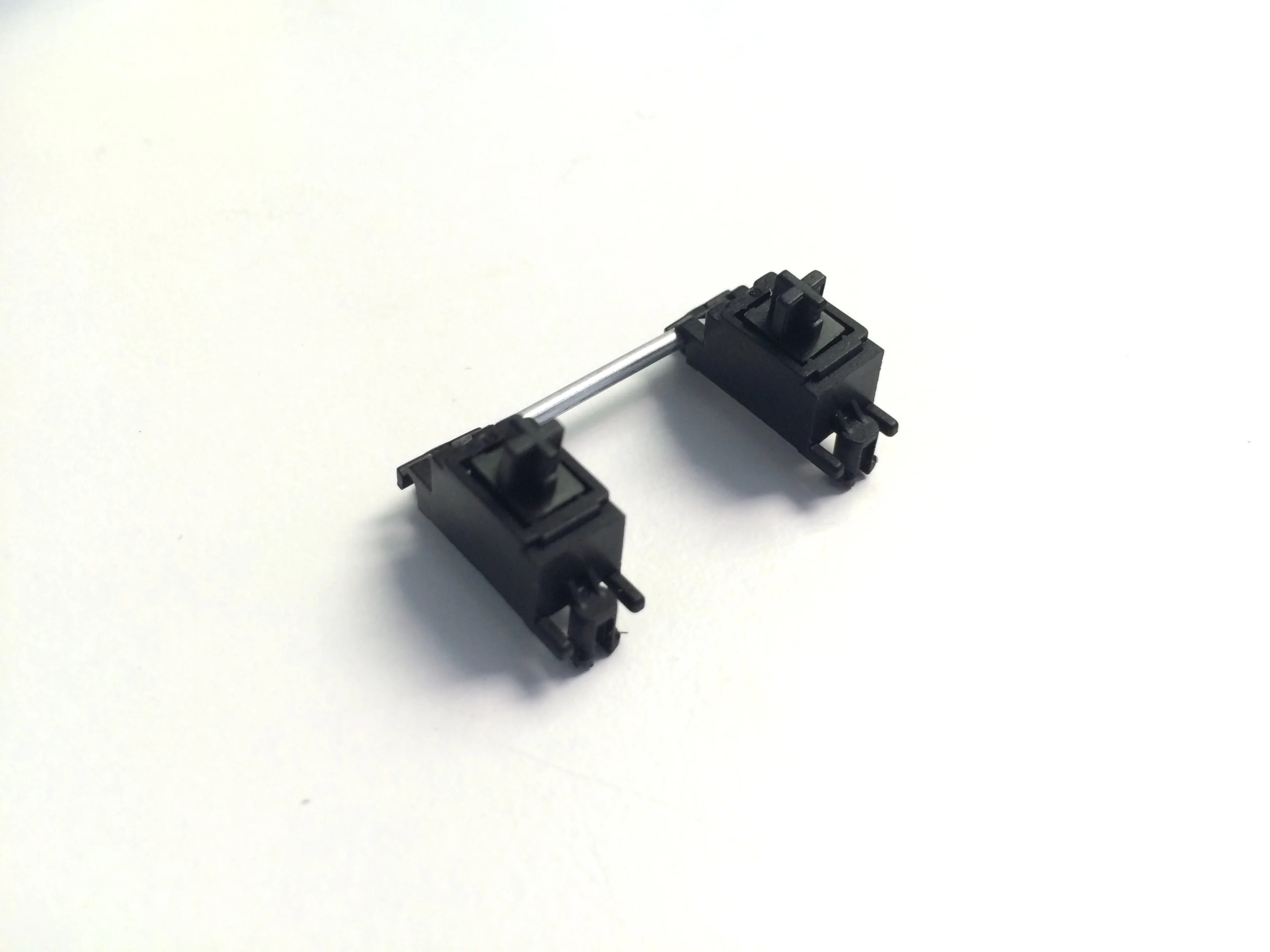

Each half of the board is a 4x6 matrix, but there is the option to have a 2u key in the innermost corners in place of 2 1u keys. The spot for the 2u has holes for Cherry PCB mounted stabilizers. This layout needs 48 keycaps.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Levinson an improved version Let's Split and adds LED backlight and 2u key support. Supports MX/Alps/Choc switches.
There are three different types of Levinson PCBs currently available:
- Levinson Rev. 3 PCB Kit (this item): More DIY involved, where you have to solder on diodes/resistors/Pro Micro yourself
- Nyquist/Levinson Rev. 3 (see the product page): Less DIY involved. Already has everything except switches soldered to it. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
- Nyquist/Levinson Rev. 4 (see the product page): Has MX-compatible hotswap sockets and per-key RGB LEDs pre-soldered on. Bottom row can be broken off to convert the Nyquist to a Levinson layout.
Layout
Each half of the board is a 4x6 matrix, but there is the option to have a 2u key in the innermost corners in place of 2 1u keys. The spot for the 2u has holes for Cherry PCB mounted stabilizers. This layout needs 48 keycaps.
